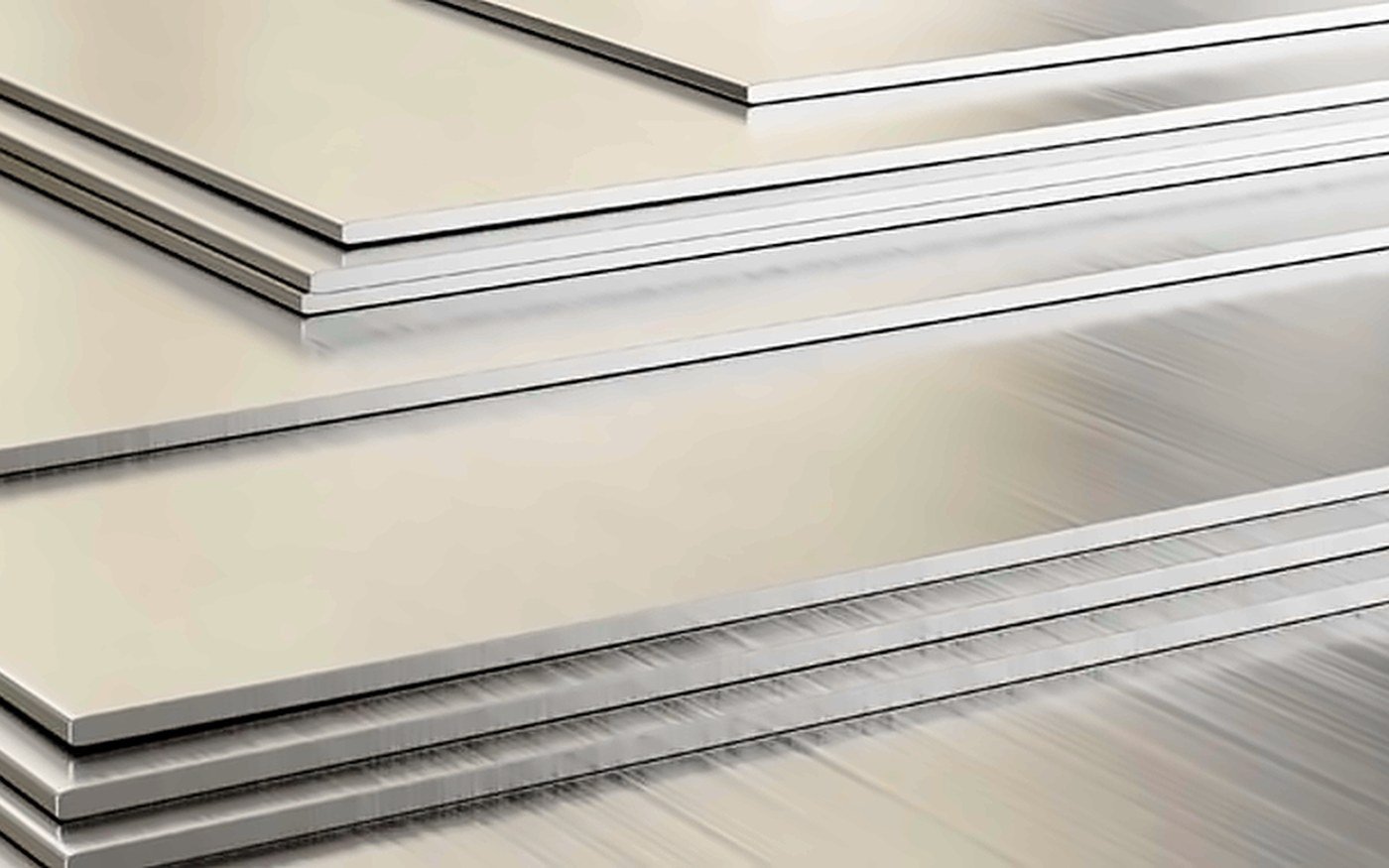

Hot rolled sheet
Hot rolled steel supplied flat rather than coiled, in the thicknesses structural fabrication works in. The abrasion resistant NM grades and the high tensile MC grades are the same product carried to a harder or a stronger specification.
- Grade / purity
- SS400, S235JR to S355J2+N, A36, NM300 to NM550, S390MC to S960MC
- Standard
- JIS / EN / ASTM / GB
- Form
- Sheet, 1.5 to 25.4 mm thick, up to 2100 mm wide
Applications
Wear-resistant parts (NM grades)
Liner plates, buckets, chutes and crusher bodies for mining, cement and material handling.
High-tensile components (MC grades)
Chassis members, truck and trailer frames, crane booms and other weight-critical structures.
Specification
| Standard | JIS / EN / ASTM / GB Standard |
|---|---|
| Grades | SS400, SM490A/B/YA, S235JR/J0/J2+N, S275JR/J0/J2+N S355JR/J0/J2+N, A36, A572 Gr.50 SAE1008, SAE1010, SAE1012, SPHC, Q195, Q235, Q345 etc. Abrasion resistant: NM300, NM360, NM400, NM450, NM500, NM550 High tensile / strength: S390MC, S420MC, S460MC, S500MC, S700MC, S960MC etc. |
| Sizes | Thickness: 1.5 mm – 25.4 mm Width: 1000 mm – 2100 mm Length: 2000 mm – 15000 mm |
