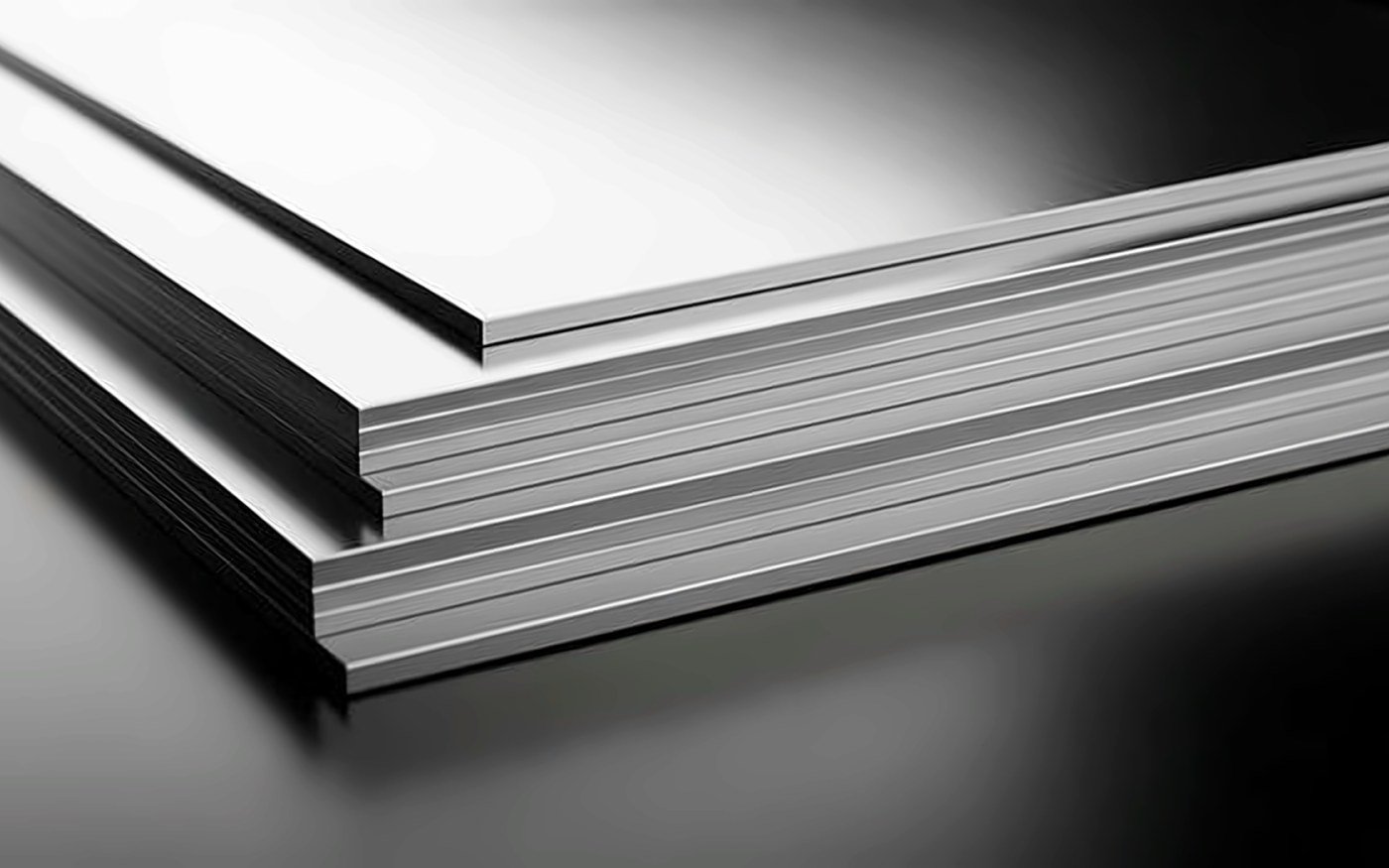

Hastelloy X sheet
A nickel-chromium-molybdenum sheet alloy that keeps its strength and resists oxidation in the hot section of a gas turbine. Double melted and solution treated, it is specified where the metal runs hot for a long time.
- Grade / purity
- Hastelloy X, UNS N06002
- Standard
- SAE AMS 5536R
- Form
- Sheet, 1 mm × 1500 × 2000 mm
Applications
Aerospace engine hardware
Tailpipes, afterburner parts and exhaust components needing oxidation resistance in cyclic service.
Industrial and chemical process
Furnace retorts, muffles, catalyst grids and petrochemical equipment in oxidising or carburising atmospheres.
Specification
| Product | Hastelloy X / Alloy X Sheet |
|---|---|
| Material grade | Hastelloy X (Alloy X) |
| UNS designation | UNS N06002 |
| Governing standard | SAE AMS 5536R |
| Melting method | VIM + ESR (double melt) |
| Supply condition | Solution heat-treated |
| Dimension | 1 mm (tol. ±0.13) × 1500 mm × 2000 mm |
| Element | Spec (%) | Actual (%) | Element | Spec (%) | Actual (%) |
|---|---|---|---|---|---|
| C | 0.05 – 0.15 | 0.052 | Mn | 1.00 max | 0.42 |
| Si | 1.00 max | 0.11 | P | 0.040 max | 0.0053 |
| S | 0.030 max | 0.0004 | Cr | 20.50 – 23.00 | 21.08 |
| Co | 0.50 – 2.50 | 1.26 | Mo | 8.00 – 10.00 | 8.32 |
| W | 0.20 – 1.00 | 0.62 | Fe | 17.00 – 20.00 | 19.82 |
| Al | 0.50 max | 0.26 | Ti | 0.15 max | 0.063 |
| B | 0.010 max | <0.002 | Cu | 0.50 max | 0.15 |
| Ni | Balance | Rem. |
| Tensile properties (room temp.) | Tensile strength 785 MPa · Yield strength 356 MPa · Elongation 42 % |
|---|---|
| Bending test | Qualified |
| Stress-rupture at 816 °C | Stress 110.3 MPa · Life 25.45 h · Elongation 38 % |
| Average grain size | ASTM No. 5 |
| Visual / dimensional inspection | Qualified |
